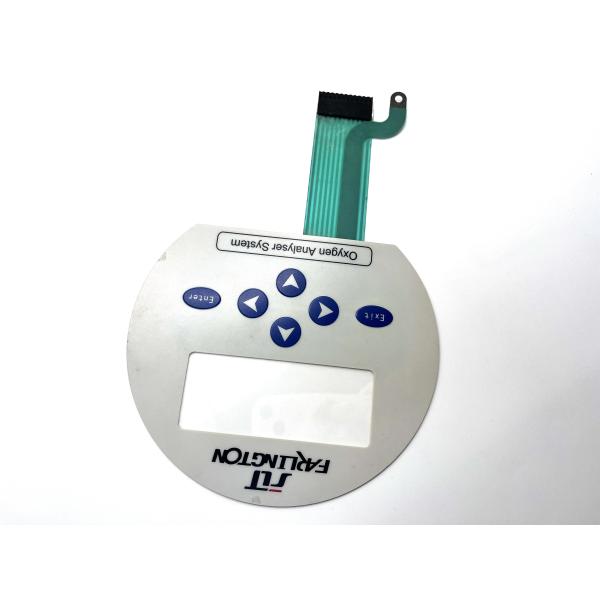

Matrix Sealed Industrial Side Actuated Tactile Switch With Led Embedded

Name: Matrix Sealed Industrial Side Actuated Tactile Switch With Led Embedded
Brand: Taida
Price: 1 USD

Quality Matrix Sealed Industrial Side Actuated Tactile Switch With Led Embedded for sale

Brand Name : Taida

Model Number : 20241102-12

Certification : ISO9001,SGS,ROHS,REACH,UL

Place of Origin : DongGuan of China

MOQ : 100 pcs

Price : communication

Payment Terms : Western Union, T/T,PAYPAL

Supply Ability : 35000 +pcs +a Month

Delivery Time : 4-5 days for Samples making ;10-15 days for Batch goods

Packaging Details : PE bags first and Foam in Carton and etc

Material : Polyester or Polycarbonate or others

Color : Pantone, RAL CMYK ,RGB

Pitch of Connect : 1.0MM ,1.25MM，2.54MM，or 0.5MM

Adhesive : 3M467 200MP adheisve or others

Button type : metal dome

circuit options : silver flex circuit

led Color : white or other

LED type : 0603or0805

Contact Now

Matrix Sealed Industrial Side Actuated Tactile Switch With Led Embedded

Key Features

Tactile Feedback: Provides a noticeable click or resistance when pressed, indicating activation.
Compact Size: Often smaller than traditional top-actuated switches, allowing for denser layouts.
Actuation Method: The switch is designed to respond to lateral pressure, making it suitable for compact designs.
Durability: Typically built for a high number of cycles, making them reliable for frequent use.

Applications

Industrial Equipment: Common in machinery where side access is more feasible than top access.
Wearable Devices: Suitable for smartwatches and fitness trackers where compactness is crucial.
Consumer Electronics: Used in remote controls, handheld devices, and keyboards.
Automotive Controls: Ideal for dashboard buttons and controls where space is limited.

Descriptions :

Overlay material ---For front or face overlay
Polyester						Polycarbonate
1 Highly versatile for embossing 2 Highly resistant for chemicals 3 Better durability 4 For internal and external use						1 wide range of the surface finishes and thicknesses 2 More cost-effective 3 For internal and external use 4 many Lexan label choose
Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications
Pedestal embossing	Rim embossing		Pillow embossing				Dim embossing
Windows or LCD --- For display functions
Printed colors windows such like red ,black and so on					Transparent finishes windows
Keys
Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds					Non-tactile keys: printed silver spot on the circuit
LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others
EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs
Cables --- is extension of circuit and communication with your device
Screen printing conductive silver cable		Copper plated cable /Polyimide or FPC						PCB cable
Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector
Shielding --- For protection function
Gasket seal/Waterproof :protect the conductors against from the humidity and splashes				EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect
Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others
Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA
Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL
Standard Tolerances :+/-0.2MM

Performance Index

Environmental	Operating Temperature	-40°C to +80°C (-40°to 176°F)
	Storage Temperature	-40°C to +85°C (-40°to 185°F)
	Humidity	40°C, 90% to 95% for 240 hours
	Vibration	20G's max.
Mechanical	Actuation Force	Non-tactile 60g to 300g (2oz to 10oz)
		Tactile 150g to 400g (6oz to 14oz)
	Switch Stroke	Non-tactile 0.1 to 0.5mm
	Life Expectancy	Tactile 0.6 to 1.5mm
		Non-tactile >5 million actuations
		Tactile >1 million actuations
Electrical	Operating Voltage	35 volts maximum
	Operating Current	10 micro amps to 100 milliamps, resistive
	Operating Power	1 watt maximum
	Circuit Resistance	10 ohms to 500 ohms, dependent on size and layout
	Insulation Resistance	100M ohms at 100V DC
	Dielectric Withstand	>250 VRMs (50-60Hz 1 minute)
	Contact Bounce	≤ 5 milliseconds

Common membrane keypad structure choose :
